C.A 6011 | Chauvin Arnoux
C.A 6011 Continuity tester ALONE
Order No.: 21K7168
EAN: 3663653001403
MPN:
C.A 6011
Unit Price (€ / pc.)
301.07 € *
Available: 0 pcs.
Leadtime: 1 Week **

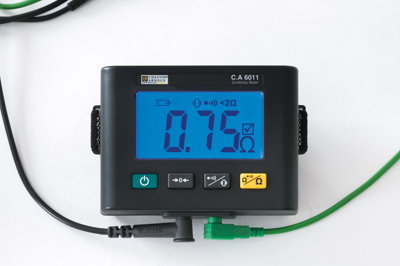

Continuity tester, C.A 6011, Chauvin Arnoux

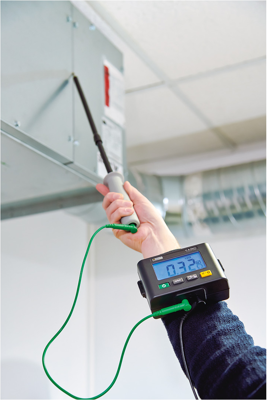

The CA 6011 continuity tester has been specially designed for periodic testing of the protective earth conductors of electrical equipment, appliances and installations, linked in particular to the standards and regulations: IEC/EN 60364, NF C 15-100, VDE 100, etc.
These systematic, repetitive tests represent more than 80% of testing operations. Particular care must therefore be taken to prevent them from becoming tiresome.
Features
- Continuity measurement: 0.00 Ω to 20.00 Ω
- Automatic polarity reversal
- Measurement current: 200 mA
- Compensation of the resistance of the measuring leads
- Resistance measurement: up to 200.0 Ω
Technical specifications
| Display | LED | |
| Version | continuity tester | |
| Continuity test | 0-200 Ω | |
| Rated category | CAT IV | |
| Degree of protection (IP) | IP40 |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 90303200 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
