C.A 6526 | Chauvin Arnoux

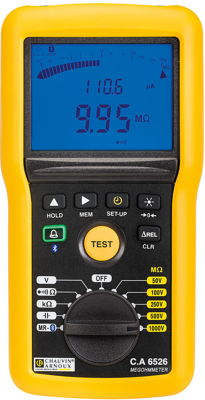

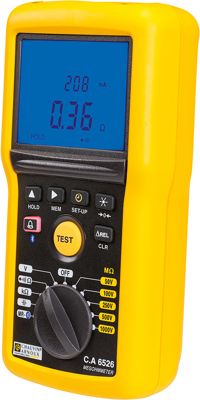

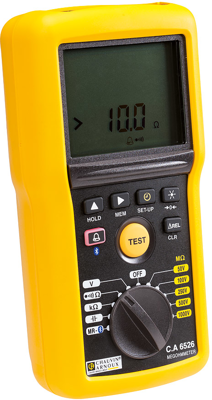

Insulation tester, with magnetic stand, CAT IV 600 V, Chauvin Arnoux C.A 6526
Order No.: 21K7172
EAN: 3760171419656
MPN:
C.A 6526
Unit Price (€ / pc.)
897.26 € *
Standard delivery time from the manufacturer is: 1 Week
Megohmmeter, C.A 6526, Chauvin Arnoux
Features
- 1 kV Insulation and Continuity Tester
- Industrial maintenance
- 200 GΩ
- Test voltage: 50-100-250-500-1,000 V
- Manual / Lock / Duration modes, PI / DAR ratios
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Surge voltage category | CAT IV 600 V | |
| Insulation resistance Min | 2 Ω | |
| Insulation resistance Max | 200 Ω | |
| Degree of protection (IP) | IP54 | |
| Max measured value AC voltage | 500 V | |
| Batteries | AA | |
| Max measured value DC voltage | 1000 V | |
| Version | with magnetic stand | |
| Product type | insulation tester |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 90303320 |
| Country of origin | FR |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
