C.A 6424 | Chauvin Arnoux

Grounding meter, with automatic stabilization, CAT IV 600 V, Chauvin Arnoux C.A 6424

Order No.: 21K7184
EAN: 3663653001601
MPN:
C.A 6424

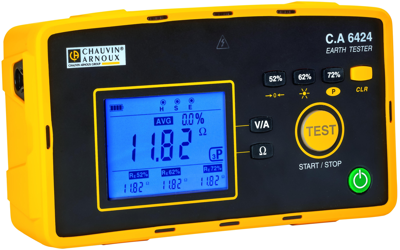

C.A 6424 Chauvin Arnoux VDE testers, Installation testers, Insulation testers Image 1

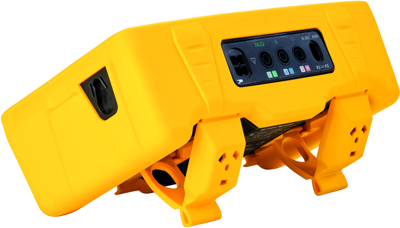

C.A 6424 Chauvin Arnoux VDE testers, Installation testers, Insulation testers Image 2

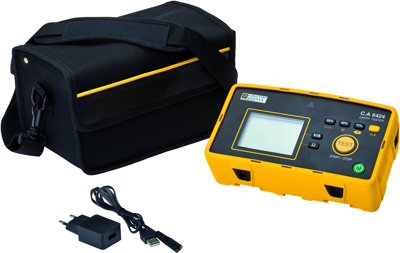

C.A 6424 Chauvin Arnoux VDE testers, Installation testers, Insulation testers Image 3

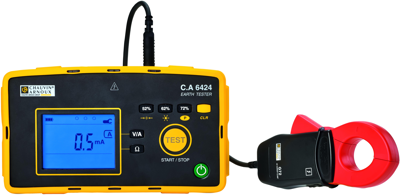

C.A 6424 Chauvin Arnoux VDE testers, Installation testers, Insulation testers Image 4

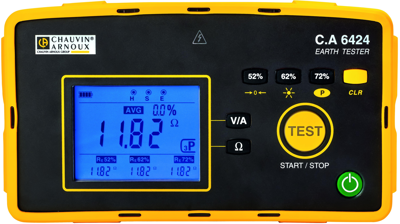

C.A 6424 Chauvin Arnoux VDE testers, Installation testers, Insulation testers Image 5
Image may differ
Unit Price (€ / pc.)
853.23 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
853.23 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
853.23 €

Earth/Ground Tester, C.A 6424, Chauvin Arnoux

Rugged and waterproof, the CA 6424 earth tester can be used for 2P and 3P earth measurements in total safety. Text markings and colour coding help users to avoid connection errors. It can also measure the voltage up to 600 V. All the measurements and functions are directly accessible on the front panel, even when wearing gloves. Special connection technology for the G72 clamp allows measurement of the line (phase) current and leakage current, from 0.5 mA to 60 A. There is a dedicated key for cable compensation. A LED indicates when a hazardous voltage is present, while the NOISE symbol flashes to indicate when a noise voltage is present.

Features

  • 2P resistance / 3P earth measurements up to 50 kΩ in high-resistivity terrain
  • Voltage measurement up to 600 V and RH stake resistance measurement
  • Automatic stabilization of the measurement
  • Leakage current measurement from 0.5 mA
  • Battery recharging via the mains, USB socket or vehicle cigarette lighter
Technical specifications
Version with automatic stabilization
Batteries AA
Product type grounding meter
Resistance Range 0.05 Ohm to 50 kOhm
Max measured value AC voltage 600 V
Surge voltage category CAT IV 600 V
Degree of protection (IP) IP65
Logistics
Customs tariff number 90303200
Country of origin FR
Compliance
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
