C.A 6422 | Chauvin Arnoux

Grounding meter, with automatic stabilization, CAT IV 600 V, Chauvin Arnoux C.A 6422

Order No.: 21K7183
EAN: 3663653001595
MPN:
C.A 6422

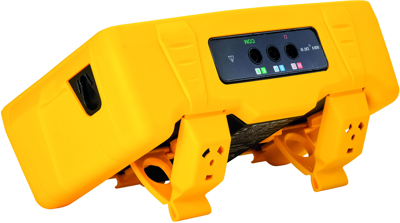

C.A 6422 Chauvin Arnoux VDE testers, Installation testers, Insulation testers Image 1

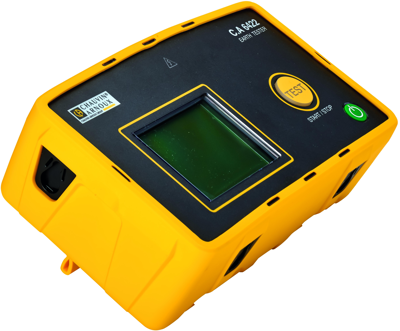

C.A 6422 Chauvin Arnoux VDE testers, Installation testers, Insulation testers Image 2

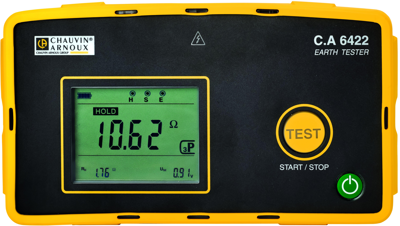

C.A 6422 Chauvin Arnoux VDE testers, Installation testers, Insulation testers Image 3

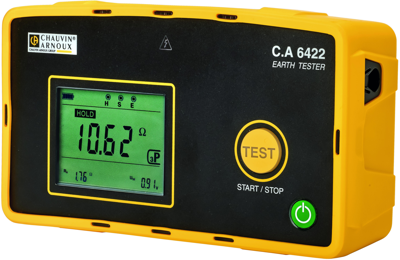

C.A 6422 Chauvin Arnoux VDE testers, Installation testers, Insulation testers Image 4

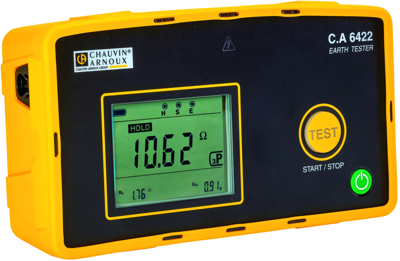

C.A 6422 Chauvin Arnoux VDE testers, Installation testers, Insulation testers Image 5
Image may differ
Unit Price (€ / pc.)
639.03 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
639.03 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
639.03 €

Earth/Ground Tester, C.A 6422, Chauvin Arnoux

Rugged and waterproof, the CA 6422 earth tester is ideal for intensive use in the field. This tester can be used for 2P and 3P earth measurements. The connections are clearly identified with text markings and colour coding. All the measurements and functions are directly accessible on the instrument's front panel, even when you are wearing gloves.

Technical Data

  • 2P resistance: 0.05 Ω to 50 kΩ
  • 3P earth: 0.5 Ω to 2 kΩ
  • Power supply: 6 x LR6 or AA batteries
Technical specifications
Version with automatic stabilization
Batteries AA
Product type grounding meter
Resistance Range 0.05 Ohm to 50 kOhm
Surge voltage category CAT IV 600 V
Degree of protection (IP) IP65
Logistics
Customs tariff number 90303200
Country of origin FR
Compliance
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
