C.A 6165 | Chauvin Arnoux
Device tester, with capacitive color touchscreen, CAT II 300 V, CAT II 600 V, VDE 0701/0702, Chauvin Arnoux C.A 6165
Order No.: 21K7152
EAN: 3663653005531
MPN:
C.A 6165
Unit Price (€ / pc.)
8,090.8100 € *
Standard delivery time from the manufacturer is: 1 Week

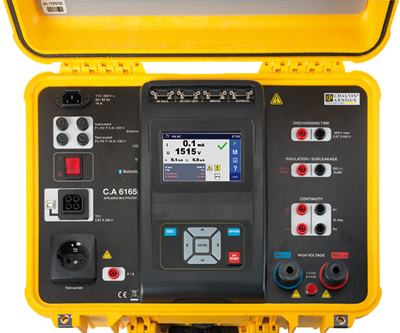

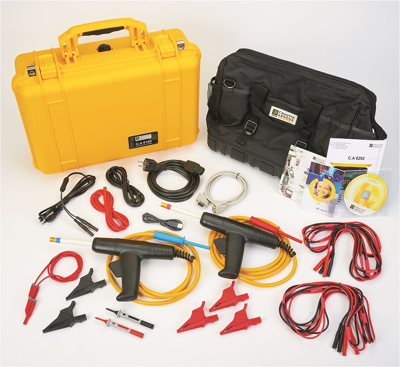

Equipment Tester, C.A 6165, Chauvin Arnoux
With the multifunctional tester C.A 6165 all electrical safety tests can be carried out on electrical devices, machines and control panels. The device is thus perfectly suitable for testing and certifying the conformity of electrical equipment during final inspection, as well as for repeated tests and maintenance work.
Features
- Capacitive color touch screen
- Automatic test sequences
- Storage of test results on memory card up to 32 GB
- High voltage test 5 kVAC / 6 kVDC, continuity test 25 A, insulation test 1 000 V.
- Spare leakage current measurement, earth conductor current measurement, differential
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Measurement Standard | VDE 0701/0702 | |
| Surge voltage category | CAT II 300 V, CAT II 600 V | |
| Degree of protection (IP) | IP50 | |
| Version | with capacitive color touchscreen | |
| Insulation resistance Max | 199.9 MΩ | |
| Product type | device tester |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 90303100 |
| Country of origin | SI |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
