C.A 6133 | Chauvin Arnoux
Installation tester, with banana cable, CAT III 600 V, Chauvin Arnoux C.A 6133
Order No.: 21K7145
EAN: 3663653001588
MPN:
C.A 6133
Unit Price (€ / pc.)
1,009.12 € *
Standard delivery time from the manufacturer is: 1 Week

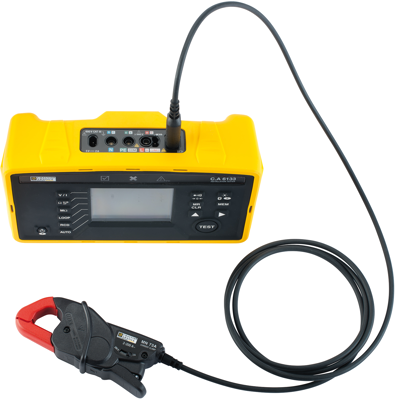

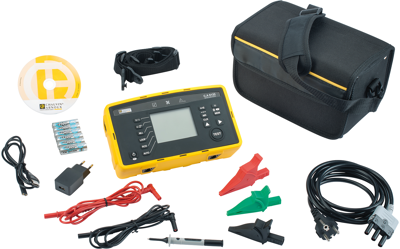

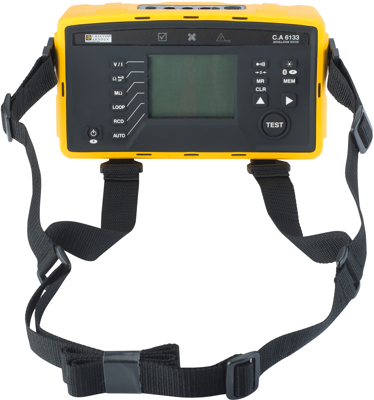

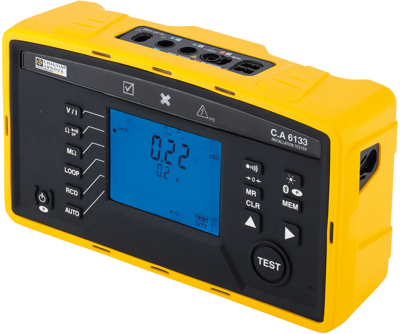

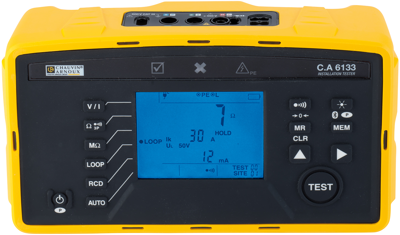

Installation tester, C.A 6133, Chauvin Arnoux
The installation testers C.A 6131 and C.A 6133 are designed to test the safety of electrical installations: in new installations before commissioning, in existing installations even during operation, and to locate faults. Especially for testing services, the portable devices are easy to use, highly efficient and comply with the applicable standards.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Product type | installation tester | |
| Version | with banana cable | |
| Surge voltage category | CAT III 600 V | |
| Insulation resistance Min | 0.01 MΩ | |
| Insulation resistance Max | 999.9 MΩ | |
| Max measured value DC voltage | 800 V | |
| Max measured value AC voltage | 550 V | |
| Degree of protection (IP) | IP54 | |
| Batteries | AA |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | FR |
| Customs tariff number | 90303200 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
