C.A 6131 | Chauvin Arnoux

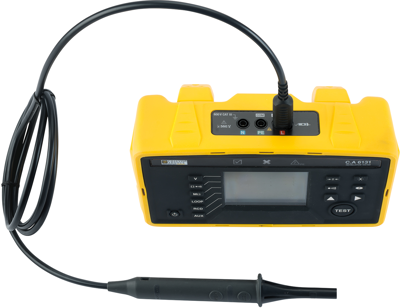

Installation tester, with banana cable, CAT III 600 V, Chauvin Arnoux C.A 6131
Order No.: 21K7146
EAN: 3663653001038
MPN:
C.A 6131
Unit Price (€ / pc.)
866.3200 € *
Standard delivery time from the manufacturer is: 1 Week
Installation Tester, C.A 6131, Chauvin Arnoux
Complete and lightweight, the C.A 6131 multifunction tester can be used to perform all the measurements and tests needed by certification organizations and maintenance teams to qualify an electrical installation.
The C.A 6131 can be used for voltage, continuity, resistance, insulation and loop measurements. The current can be measured with an external clamp. It is possible to test type A & AC RCDs in ramp or pulse mode. The C.A 6131 also checks the phase rotation. For greater efficiency, the C.A 6131 provides an immediate visual indication of the test result (OK/NOK).
Features
- Earth measurement by loop methods
- Continuity measurement at 0.2A
- Insulation testing
- RCD testing: current and trip time
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Insulation resistance Max | 999.9 MΩ | |
| Surge voltage category | CAT III 600 V | |
| Max measured value DC voltage | 800 V | |
| Insulation resistance Min | 0.01 MΩ | |
| Batteries | AA | |
| Product type | installation tester | |
| Max measured value AC voltage | 550 V | |
| Degree of protection (IP) | IP54 | |
| Version | with banana cable |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | FR |
| Customs tariff number | 90303200 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
