C.A 922 | Chauvin Arnoux
2-channel hand-held oscilloscope C.A 922, 20 MHz, 2 GSa/s, LED
Order No.: 22K7886
EAN: 3663653008334
MPN:
C.A 922
P01192200
Unit Price (€ / pc.)
1,752.87 € *
Standard delivery time from the manufacturer is: On Request
Oscilloscope, C.A 922, Chauvin Arnoux

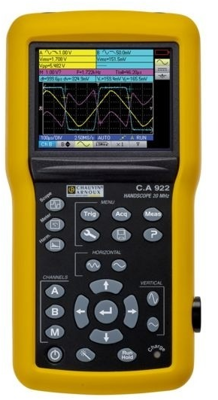

The C.A 922 is a multilingual handscope which is particularly easy to use and fits perfectly in one hand, the command keys on the front panel are easily accessible, even when wearing safety gloves. Also the colour screen is particularly easy to read and the LED backlighting helps to limit the handcope’s power consumption, with measurement remaining possible while charging.
Features
- Hands-free use

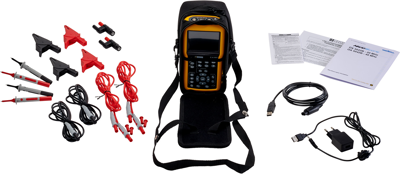

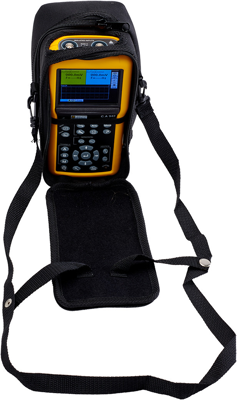

- Bag with neck-strap

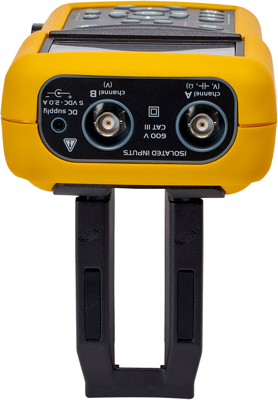

- Magnetized stand supplied for fastening on metal cabinets
Applications
- Measurement on PWM variable speed drive with display of the waveform in oscilloscope mode
- Power measurement in multimeter mode
- Analysis of mains supply disturbances with harmonic analysis
Technical specifications
| Weight | 1.2 kg | |
| Sample Rate | 2 GSa/s | |
| Width | 110 mm | |
| Height | 57 mm | |
| Length | 214 mm | |
| Version | hand-held oscilloscope | |
| Category | CAT III | |
| Bandwidth | 20 MHz | |
| Number of channels | 2 | |
| Display | LED |
Download
Logistics
| Country of origin | FR |
| Customs tariff number | 90303200 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
