P01196311E | Chauvin Arnoux
TRMS digital multimeter P01196311E, 10 A(DC), 10 A(AC), 1000 VDC, 1000 VAC, CAT III 1000 V, CAT IV 600 V

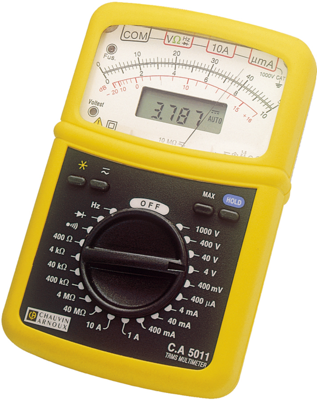

Digital/analog multimeters Chauvin Arnoux CA 5011
For TRMS measurements, with robust moving-coil mechanism with identical pointer deflection for positive and negative measured values (makes it suitable for use as zero galvanometer) and backlit 3 1/2-digit LCD (2000 measuring points). Special display design for the convenient simultaneous reading of analog and digital values. The multimeter is easy to operate and comes in an ergonomic, impact-resistant and splashproof case. In addition to voltage and current measuring functions, the device also supports acoustic continuity checks and semiconductor tests. The device also features automatic polarity indication and decimal point shift, overrange and battery low warning
5 x DC voltage: 400 mV to 1000 V
6 x DC current: 400 µA to 10 A
5 x AC voltage: 400 mV to 1000 V
6 x AC current: 400 µA to 10 A
6 x resistance: 400 ohm to 40 Mohm
3 x frequency: 4 kHz to 400 kHz. Diode test and continuity check
Operating temperatures: 0 to +50 °C. Powered by 9.0 V battery (for example IEC 6F22)
Degree of protection: IP 53
Dimensions: 160 x 105 x 56 mm
Weight: 500 g

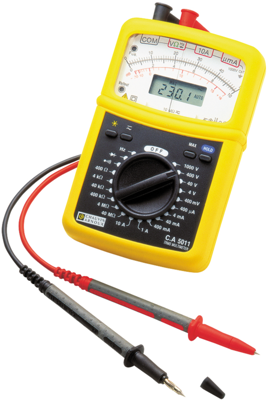

Included in the Supplied with safety test leads, battery and operating instructions
| Display Digits | 4000 | |
| Version | digital multimeter | |
| TRMS possible | Yes | |
| max. measured current value (AC) | 10 A | |
| max. measured current value (DC) | 10 A | |
| max. resistance range | 40 MΩ | |
| max. voltage measuring range (AC) | 1000 V | |
| max. voltage measuring range (DC) | 1000 V | |
| Surge voltage category | CAT III 1000 V, CAT IV 600 V |
| Country of origin | FR |
| Customs tariff number | 90303100 |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
