C.A 5233 | Chauvin Arnoux
TRMS digital multimeter C.A 5233, 10 A(DC), 10 A(AC), 600 VDC, 600 VAC, 10 pF to 1000 µF, CAT III 600 V

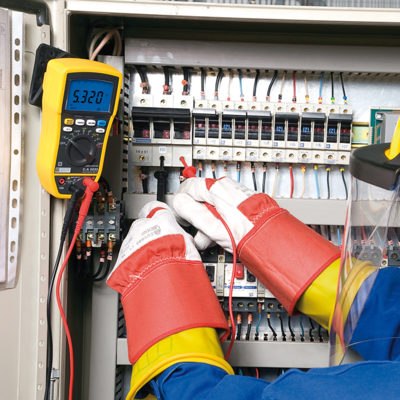

This compact, comprehensive digital multimeter is equipped with all the functions required by electricians for maintenance of low and medium-power residential and tertiary equipment and installations.

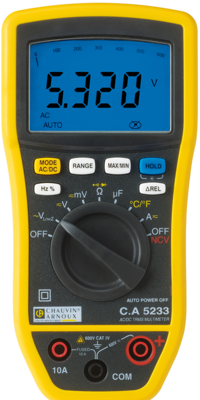

Ergonomic and simple to use, it is exceptionally easy to read with its 6,000-count backlit display with bargraph, 2 ''Off'' positions for greater effectiveness and a compact casing with a non-slip protective coating for excellent handling.
CAT IV 600V
TRMS measurements
Large 6,000-count backlit display (digits 8 mm high)
61-segment bargraph
Double OFF position

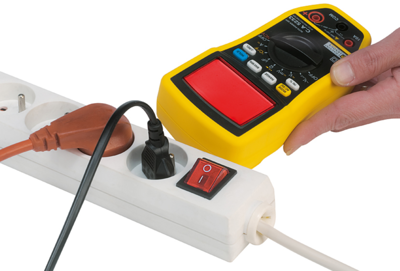

No-contact voltage detection (NCV)
VLow Z low-impedance voltage measurement to avoid stray voltages.
Min, MAX and RELative functions
Measurement up to 600 V
AC or DC current measurement up to 10 A
Frequency measurement
Temperature measurement
Capacitance measurement
60 mV range
Compact IP54 casing with built-in shockproof protection

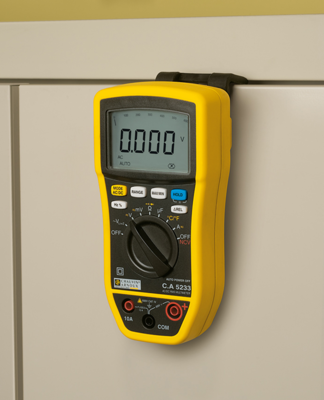

Compatible with the multi-function mounting accessory
| Filter | Property | Value |
|---|---|---|
| Version | digital multimeter | |
| TRMS possible | Yes | |
| max. measured current value (DC) | 10 A | |
| max. measured current value (AC) | 10 A | |
| max. voltage measuring range (DC) | 600 V | |
| max. voltage measuring range (AC) | 600 V | |
| Capacity range | 10 pF to 1000 µF | |
| max. resistance range | 60 MΩ | |
| Surge voltage category | CAT III 600 V | |
| Display Digits | 60000 |
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 90303100 |
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
