MA196-350 | Chauvin Arnoux
AC current clamp MA196-350, 10000 A (AC), 1000 V (AC), opening 100 mm, CAT III 1000 V, CAT IV 600 V
Order No.: 21K7207
EAN: 3663653000383
MPN:
MA196-350
P01120568
Unit Price (€ / pc.)
312.97 € *
Standard delivery time from the manufacturer is: 1 Week

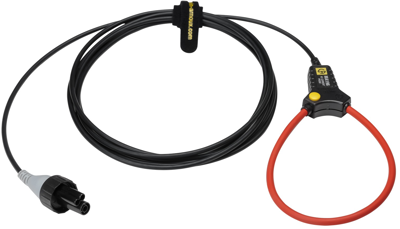

Flexible current sensor, MA196-350, Chauvin Arnoux
Sensor compatible with the Qualistar and PEL product families. Flexible AC current sensor from 100 mA to 10,000 A (depending on the instrument). Max. clamping diameter: 100mm Length of flexible part: 350 mm Sensor length: 350mm IEC 61010 1000V CAT III and 600V CAT IV
Features
- IP67 flexible current sensor Measurement range from 100 mA to 10 kA depending on measuring instrument Clamping diameter 100 mm
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Product type | AC current clamp | |
| Pliers opening | 100 mm | |
| max. measured current value (AC) | 10000 A | |
| Surge voltage category | CAT III 1000 V, CAT IV 600 V | |
| max. voltage measuring range (AC) | 1000 V | |
| TRMS possible | No |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 90309000 |
| Country of origin | FR |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
