F201 | Chauvin Arnoux
TRMS AC multimeter clamp F201, 600 A (AC), 1000 V (DC), 1000 V (AC), opening 34 mm, CAT III 1000 V, CAT IV 600 V
Order No.: 22K7868
EAN: 3760171410530
MPN:
F201
P01120921
Unit Price (€ / pc.)
301.07 € *
Standard delivery time from the manufacturer is: 1 Week

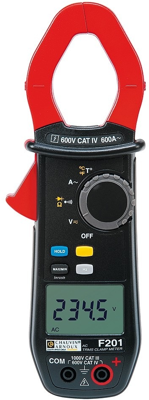

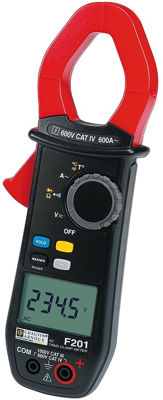

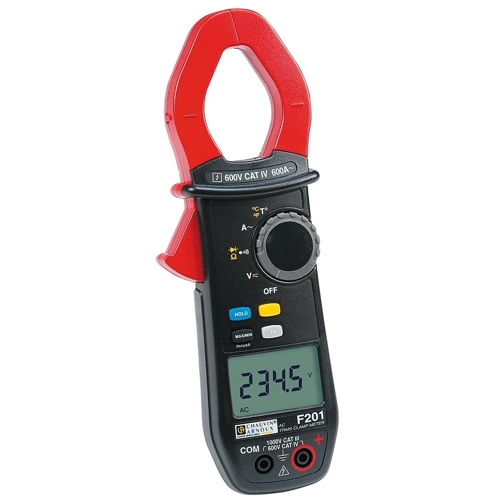

Multimeter Clamp, F201, Chauvin Arnoux
The F201 clamp is ideal for the needs of both self-employed electricians and SME contractors in the electrical sector. Equipped with a fast 12-bit TRMS digital acquisition system, F201 clamps offer particularly accurate measurements whatever the signal's waveform.
Features
- Safe and robust
- Each key corresponds to a single function whatever the mode
- The backlit LCD screen is particularly comfortable to read
- The casing is equipped with a shockproof band to protect against falls
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Product type | AC multimeter clamp | |
| TRMS possible | Yes | |
| Pliers opening | 34 mm | |
| Surge voltage category | CAT III 1000 V, CAT IV 600 V | |
| max. measured current value (AC) | 600 A | |
| max. voltage measuring range (DC) | 1000 V | |
| max. voltage measuring range (AC) | 1000 V | |
| max. resistance range | 59.99 kΩ | |
| min. Measured value (frequency) | 5 kHz | |
| max. measured value (frequency) | 20 kHz |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 90303100 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
