C.A 1621 | Chauvin Arnoux
C.A 1621 Calibrator Temperature TK
Order No.: 21K7191
EAN: 3760171417522
MPN:
C.A 1621
Unit Price (€ / pc.)
1,149.54 € *
Standard delivery time from the manufacturer is: On Request

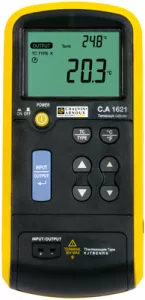

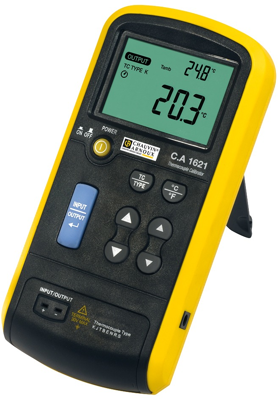

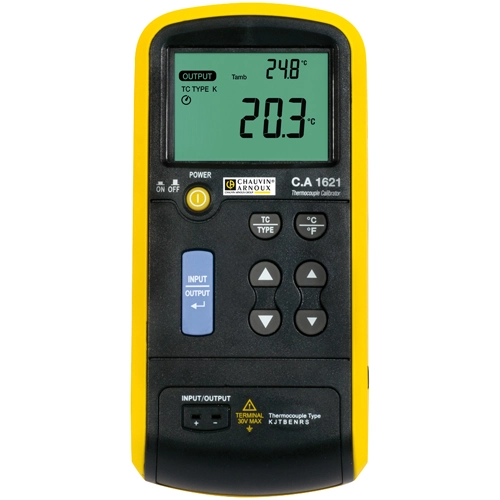

Temperature calibrator, C.A 1621, Blackvue
The compact, simple-to-use C.A 1621 thermocouple temperature calibrator is capable of measuring and simulating up to 8 types of thermocouples (J, K, T, E, R, S, B, N), as well as a voltage in mV. When used as a battery-powered stand-alone instrument, it offers a long battery life in the field. When connected to the mains, it can be used continuously without any time limit.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Product type | thermocouple calibrator | |
| measurement range | -200-1800 °C | |
| Resolution | 0.01 mV | |
| Voltage | 30 V | |
| min. operating temperature | -40 °C | |
| max. operating temperature | 60 °C | |
| Length | 205 mm | |
| Width | 98 mm | |
| Depth | 46 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 90312000 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
