MZKV210181 | Cena

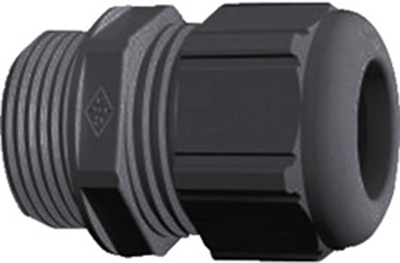

Cable gland, M20, Clamping range 7 to 14 mm, IP68, black, MZKV210181
Unit Price (€ / pc.)
0.8211 € *
Next delivery: 100 pcs. on 2025-11-14
Total Price:
0.82 € *
Price list
Quantity
Price per unit*
1 pcs.
0.8211 €
10 pcs.
0.7735 €
100 pcs.
0.6426 €
500 pcs.
0.5712 €
1000 pcs.
0.5117 €
*incl. VAT plus shipping costs
Subject to prior sale
Metric cable glands series EUROFIX, type Cena MZKV.
Material: PA 6.6. Sealing ring: Neoprene. Operating temperatures: –25 to +100 °C. Degree of protection IP 68 (5 bar, tested to DIN EN 50262). Certifications: VDE/UR for types 120.., 160.., VDE/UL/CSA for types 200.., 210.., 250.., 320.. and 400... Thread length TL: M 12/M 16 8.0 mm, M 20 9.0 mm, M 25 to M 40 11 mm.
Black.

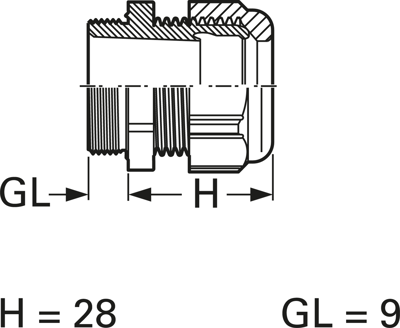

Technical attributes (type, thread, clamping range, dimension H): 210181, M 20, 7.0 to 14 mm, H 28 mm
Technical specifications
| Filter | Property | Value |
|---|---|---|
| max. operating temperature | 100 °C | |
| min. operating temperature | -25 °C | |
| Colour | black | |
| Material | PA | |
| Thread size | M20 | |
| min. clamping range | 7 mm | |
| max. clamping range | 14 mm | |
| Degree of protection (IP) | IP68 | |
| Product type | cable gland |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 39269097 |
| Original Packaging | Bag with 100 pieces |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
