MZKV200011 | Cena

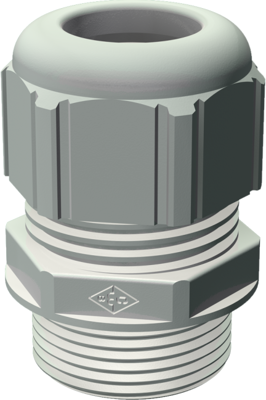

Cable gland, M20, Clamping range 6 to 12 mm, IP68, dark gray, MZKV200011

Order No.: 12H1918
EAN: 4099891198435
MPN:
MZKV200011
Series: EUROFIX
MZKV200011 Cena Cable Glands Image 1
MZKV200011 Cena Cable Glands Image 2
Image may differ
Unit Price (€ / pc.)
0.6307 € *
Available: 73 pcs.
Total Price:
0.63 € *
Price list
Quantity
Price per unit*
1 pcs.
0.6307 €
10 pcs.
0.5950 €
100 pcs.
0.4998 €
500 pcs.
0.4403 €
1000 pcs.
0.3927 €
*incl. VAT plus shipping costs
Subject to prior sale

Metric cable glands series EUROFIX, type Cena MZKV.

Material: PA 6.6. Sealing ring: Neoprene. Operating temperatures: –25 to +100 °C. Degree of protection IP 68 (5 bar, tested to DIN EN 50262). Certifications: VDE/UR for types 120.., 160.., VDE/UL/CSA for types 200.., 210.., 250.., 320.. and 400... Thread length TL: M 12/M 16 8.0 mm, M 20 9.0 mm, M 25 to M 40 11 mm.

Dark-gray.

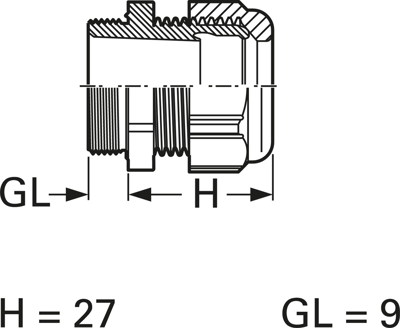

Technical attributes (type, thread, clamping range, dimension H): 200011, M 20, 6.0 to 12 mm, H 27 mm

Technical specifications
Filter Property Value
Degree of protection (IP) IP68
Material PA
max. operating temperature 100 °C
min. clamping range 6 mm
max. clamping range 12 mm
Thread size M20
Product type cable gland
min. operating temperature -25 °C
Colour dark gray
Logistics
Property Value
Country of origin DE
Original Packaging Bag with 100 pieces
Customs tariff number 39269097
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
