MZKV160011 | Cena

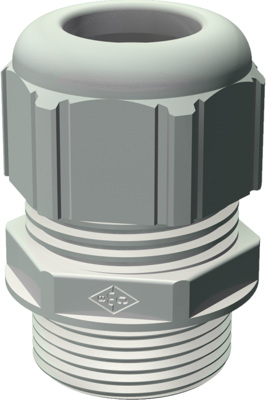

Cable gland, M16, Clamping range 4 to 10 mm, IP68, dark gray, MZKV160011

Order No.: 12H1917
EAN: 4099891198428
MPN:
MZKV160011
Series: EUROFIX
MZKV160011 Cena Cable Glands Image 1
MZKV160011 Cena Cable Glands Image 2
Image may differ
Unit Price (€ / pc.)
0.4046 € *
Standard delivery time from the manufacturer is: 10 Weeks
Total Price:
40.46 € *
Price list
Quantity
Price per unit*
100 pcs.
0.4046 €
500 pcs.
0.3570 €
1000 pcs.
0.3213 €
*incl. VAT plus shipping costs
Subject to prior sale

Metric cable glands series EUROFIX, type Cena MZKV.

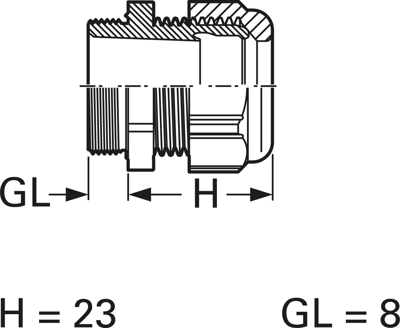

Material: PA 6.6. Sealing ring: Neoprene. Operating temperatures: –25 to +100 °C. Degree of protection IP 68 (5 bar, tested to DIN EN 50262). Certifications: VDE/UR for types 120.., 160.., VDE/UL/CSA for types 200.., 210.., 250.., 320.. and 400... Thread length TL: M 12/M 16 8.0 mm, M 20 9.0 mm, M 25 to M 40 11 mm.

Dark-gray.

Technical attributes (type, thread, clamping range, dimension H): 160011, M 16, 4.0 to 10 mm, H 23 mm

Technical specifications
Filter Property Value
max. operating temperature 100 °C
min. operating temperature -25 °C
Colour dark gray
Material PA
Thread size M16
min. clamping range 4 mm
max. clamping range 10 mm
Degree of protection (IP) IP68
Product type cable gland
Logistics
Property Value
Customs tariff number 39269097
Original Packaging Bag with 100 pieces
Country of origin DE
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
