MVS200181 | Cena

Locking screw, M20, IP54, black, MVS200181

Order No.: 06N4210
EAN: 4099891198121
MPN:
MVS200181
MVS200181 Cena Cable Glands Image 1
MVS200181 Cena Cable Glands Image 2
Image may differ
Unit Price (€ / pc.)
0.0964 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
9.64 € *
Price list
Quantity
Price per unit*
100 pcs.
0.0964 €
500 pcs.
0.0845 €
*incl. VAT plus shipping costs
Subject to prior sale

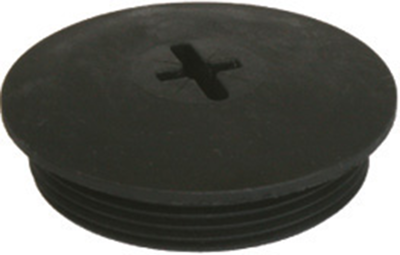

Dummy plugs for cable junction boxes, type MVS.

With metric thread, cross-recessed/slotted head combination, as dummy plug made of polyamide; Color: light-gray and black.

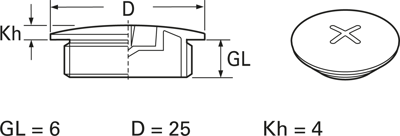

Technical attributes (type, rated size, thread length TL, cap dimensions D x H, color): 200, M20, TL 6.0, D 25, 4.0 mm, black

Technical specifications
Filter Property Value
max. operating temperature 100 °C
min. operating temperature -40 °C
Colour black
Material PA
Thread size M20
Degree of protection (IP) IP54
Product type locking screw
Logistics
Property Value
Customs tariff number 39269097
Original Packaging Bag with 100 pieces
Country of origin DE
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
