XKLD31006 | Celduc Relais
Solid state relay, 10-30 VDC, DC on/off, 10-40 VDC, 10 A, DIN rail, XKLD31006
Order No.: 31G1291
EAN: 3760283307858
MPN:
XKLD31006
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
82.6455 € *
Standard delivery time from the manufacturer is: 7 Weeks

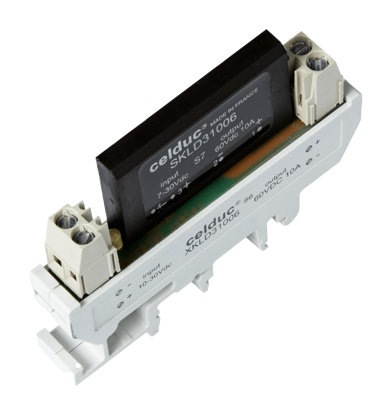

Solid state relay, XKLD31006, Celduc Relais
Solid state relay designed and approved for railway applications (EN 50155).
Features
- Ultra low voltage drop
- Built-in overvoltage protection
- Control display LED (green)
Applications
- Traffic lights
- Small motors, electromagnets, lights, heaters
- Measurement products
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated current | 10 A | |
| Voltage | 10-40 VDC | |
| Control Voltage | 10-30 VDC | |
| Switching Mode | DC on/off | |
| Assembly | DIN rail | |
| LED display | Yes |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | FR |
| Customs tariff number | 85364190 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
