SWG50210 | Celduc Relais
Solid state relay, 0-10 VDC, 230 VAC, 8 A, DIN rail, SWG50210
Order No.: 45P4993
EAN: 3760283305861
MPN:
SWG50210
Unit Price (€ / pc.)
336.2940 € *
Standard delivery time from the manufacturer is: 8 Weeks

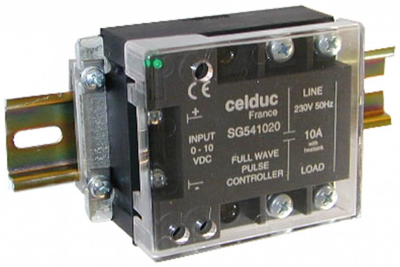

Single phase controller, SWG50210, Celduc Relais
The SWG50210 is a single phase controller. This range of controller has an analog input isolated from the mains, provided to vary the cyclic working ratio of a load proportionally to the input. The control is synchronous with the mains and has only full periods
Technical specifications
| Filter | Property | Value |
|---|---|---|
| LED display | No | |
| Assembly | DIN rail | |
| Rated current | 8 A | |
| Control Voltage | 0-10 VDC | |
| Voltage | 230 VAC | |
| Voltage V RRM (peak reverse voltage) | 600 V |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | FR |
| Customs tariff number | 85365003 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
