SV969300E | Celduc Relais
Solid state relay, 12-30 VDC, 24-500 VAC, 40 A, screw mounting, SV969300E
Order No.: 45P4983
EAN: 3760283306202
MPN:
SV969300E
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
301.9149 € *
Available in 5 Days: 5 pcs. - if ordered today

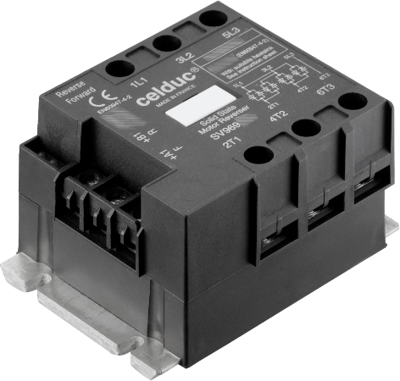

Motor reverser, SV969300E, Celduc Relais
The SV969300E is designed for controlling and inverting the direction of a three phase motors without direct third leg. The maximum current of semiconductors is 50 Amps. rms, which allows a motor with a current rating of 8 up to 10 Amps.rms, taking the starting and reversing current into account.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated current | 40 A | |
| Voltage | 24-500 VAC | |
| Control Voltage | 12-30 VDC | |
| Assembly | screw mounting | |
| LED display | No |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | FR |
| Customs tariff number | 85365003 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
