SUL865070 | Celduc Relais
Solid state relay, 3.5-32 VDC, zero voltage switching, 24-510 VAC, 50 A, DIN rail, SUL865070
Unit Price (€ / pc.)
87.9172 € *
Standard delivery time from the manufacturer is: 5 Weeks

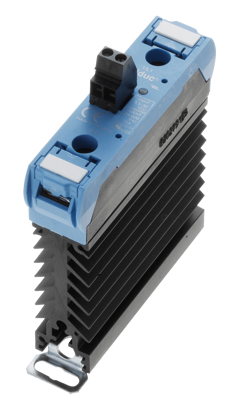

Solid state relay, SUL865070, Celduc Relais
Single phase power solid state relay especially designed for most types of loads. Back to back thyristors on output with TMS2 technology with a longlifetime expectancy: 24 to 510 VAC 50 A thyristors size.
Features
- High Immunity and output voltage protection by VDR
- 2 points pluggable control connector
- Yellow LED visualization on the input
- IP20 protection by removable flaps on terminals with optional labels
- Designed in conformity with IEC/ EN60947-4-3 and EN60950/VDE0805 ; IEC 60335-1/ VDE0700-1 ; UL-cUL
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Switching Mode | zero voltage switching | |
| Rated current | 50 A | |
| Assembly | DIN rail | |
| Voltage | 24-510 VAC | |
| LED display | Yes | |
| Control Voltage | 3.5-32 VDC |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85365003 |
| Country of origin | FR |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
