SU867070 | Celduc Relais
Solid state relay, 3.5-32 VDC, zero voltage switching, 24-510 VAC, 75 A, screw mounting, SU867070
Order No.: 45P4954
EAN: 3760283307704
MPN:
SU867070
Unit Price (€ / pc.)
77.3143 € *
Available: 0 pcs.
Available in 5 Days: 105 pcs.
Leadtime: On Request **

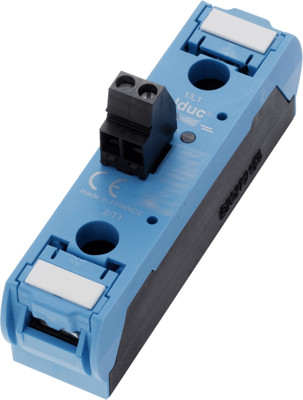

Solid state relay, SU867070, Celduc Relais
The SU867070 is a 22,5 mm pitch solid state relay for space-saving design. Mounting compatible with sandard "hockey puck". This product is especially designed for most types of loads.
Features
- High Immunity and output voltage protection by VDR
- Very low zero cross level
- 2 points pluggable control connector
- Yellow LED visualization on the input
- Input over-voltage protection
- IP20 protection by removable flaps on terminals with optional labels
Technical specifications
| Rated current | 75 A | |
| Voltage | 24-510 VAC | |
| Control Voltage | 3,5-32 VDC | |
| Voltage V RRM (peak reverse voltage) | 1200 V | |
| Switching Mode | nullspannungsschaltend | |
| Assembly | Schraubmontage | |
| LED display | Yes |
Download
Logistics
| Country of origin | FR |
| Customs tariff number | 85365003 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
