SU842770 | Celduc Relais

Solid state relay, 18-30 VAC/VDC, zero voltage switching, 12-275 VAC, 25 A, screw mounting, SU842770

Order No.: 45P4949
EAN: 3760283307759
MPN:
SU842770

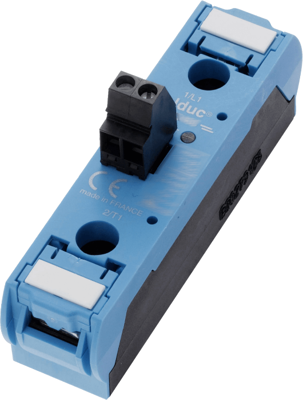

SU842770 Celduc Relais Solid State Relays
Image may differ
Unit Price (€ / pc.)
50.9915 € *
Standard delivery time from the manufacturer is: 15 Weeks
Total Price:
1,835.69 € *
*incl. VAT plus shipping costs
Subject to prior sale
36 pcs.
50.9915 €

Solid state relay, SU842770, Celduc Relais

The SU842770 is a 22,5 mm pitch solid state relay for space-saving design. Mounting compatible with sandard "hockey puck". This product is especially designed for most types of loads.

Features

  • High Immunity and output voltage protection by VDR
  • Very low zero cross level
  • 2 points pluggable control connector
  • Yellow LED visualization on the input
  • IP20 protection by removable flaps on terminals with optional labels
Technical specifications
Filter Property Value
Rated current 25 A
Voltage 12-275 VAC
Control Voltage 18-30 VAC/VDC
Voltage V RRM (peak reverse voltage) 600 V
Switching Mode zero voltage switching
Assembly screw mounting
LED display Yes
Logistics
Property Value
Country of origin FR
Customs tariff number 85365003
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
