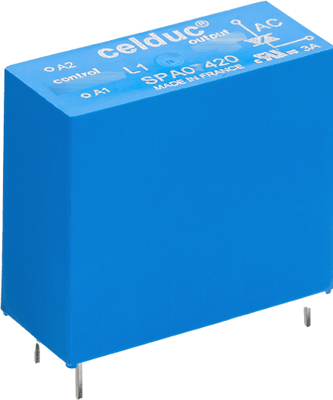

SPA01420 | Celduc Relais

Solid state relay, 4-16 VDC, zero voltage switching, 12-275 VAC, 4 A, PCB mounting, SPA01420

Order No.: 45P4936
EAN: 3760283308527
MPN:
SPA01420
SPA01420 Celduc Relais Solid State Relays
Image may differ
Unit Price (€ / pc.)
44.982 € *
Available in 5 Days: 31 pcs. - if ordered today
Total Price:
674.73 € *
*incl. VAT plus shipping costs
Subject to prior sale
15 pcs.
44.982 €

Solid state relay, SPA01420, Celduc Relais

AC Solid state relay pin to pin compatible with electromechanic relay.

Features

  • DC Non-polarized control
  • Zero-cross AC Output
  • Sustain high Inrush current
  • High immunity level
  • Integrated clamping voltage
Technical specifications
Filter Property Value
Rated current 4 A
Voltage 12-275 VAC
Control Voltage 4-16 VDC
Voltage V RRM (peak reverse voltage) 600 V
Switching Mode zero voltage switching
Assembly PCB mounting
LED display No
Logistics
Property Value
Country of origin FR
Customs tariff number 85365003
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
