SOR943440-HE-WF151 | Celduc Relais

Solid state relay, 3-32 VDC, zero voltage switching, 12-280 VAC, 28 A, DIN rail, SOR943440-HE-WF151

Order No.: 31G1279
EAN: 3760283309722
MPN:
SOR943440-HE-WF151
SOR943440-HE-WF151 Celduc Relais Solid State Relays

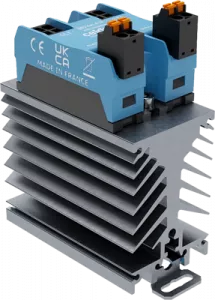

Image may differ
Unit Price (€ / pc.)
106.6478 € *
Available in 5 Days: 270 pcs. - if ordered today
Total Price:
106.65 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
106.6478 €

Solid state contactor, SOR943440-HE-WF151, Celduc Relais

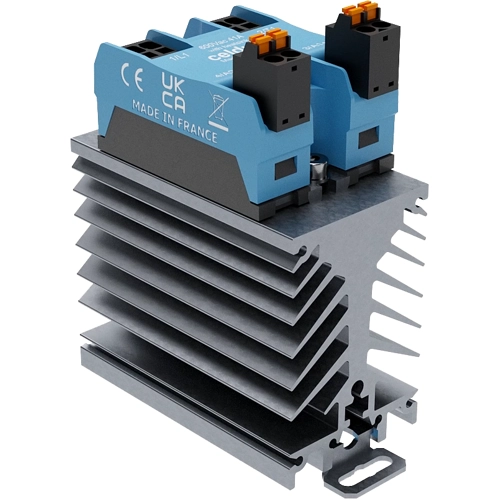

Zero cross solid state contactor especially designed for resistive loads (AC-1). Delivered mounted on WF151200 heatsink with DIN rail adaptor.

Features

  • Overvoltage protection at the output by self turn ON of the thyristors (TVS diodes on gates)
  • Green LED visualization on the input
  • Double "push-in" type spring power terminals
  • Double "push-in" type pluggable spring control terminals
  • Designed in compliance with IEC/ EN60947-4-3; IEC 60335-1/ VDE0700-1; IEC 62314

Applicatons

  • Heating elements
Technical specifications
Filter Property Value
Rated current 28 A
Voltage 12-280 VAC
Control Voltage 3-32 VDC
Voltage V RRM (peak reverse voltage) 600 V
Switching Mode zero voltage switching
Assembly DIN rail
LED display Yes
Logistics
Property Value
Country of origin FR
Customs tariff number 85365003
Compliance
Property Value
SVHC free No
Date of RoHS guidelines 3/31/15
RoHS conform Yes
