SON845040 | Celduc Relais
Solid state relay, 6-32 VDC, zero voltage switching, 40-260 VAC, 50 A, screw mounting, SON845040
Order No.: 45P4925
EAN: 3760283300330
MPN:
SON845040
Unit Price (€ / pc.)
97.2468 € *
Standard delivery time from the manufacturer is: 15 Weeks

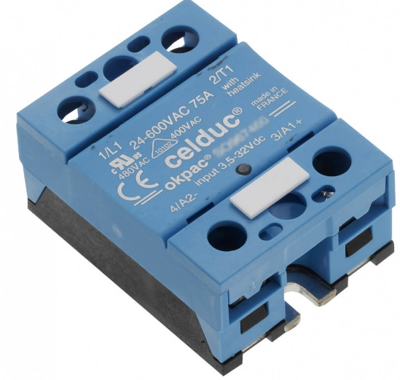

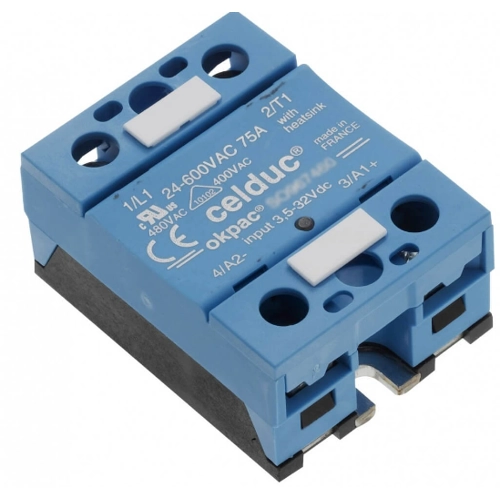

Solid state relay, SON845040, Celduc Relais
The SON845040 is a low noise solid state relay designed for most type of loads.
Features
- Thyristors on output with TMS² technology for a long lifetime
- Low conducted emission noise for residential application
- Over-voltage protection by thyristor turn on
- Large control range with input current limiter
- Green LED visualization on the input
- Over-voltage protection on input (transil)
- IP20 protection by flaps on terminals
Technical specifications
| Filter | Property | Value |
|---|---|---|
| LED display | Yes | |
| Switching Mode | zero voltage switching | |
| Assembly | screw mounting | |
| Rated current | 50 A | |
| Control Voltage | 6-32 VDC | |
| Voltage | 40-260 VAC |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | FR |
| Customs tariff number | 85365003 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
