SOM040100 | Celduc Relais
Solid state relay, 3.5-32 VDC, DC on/off, 5-60 VDC, 40 A, screw mounting, SOM040100
Order No.: 45P4921
EAN: 3760283302570
MPN:
SOM040100
Unit Price (€ / pc.)
101.1619 € *
Standard delivery time from the manufacturer is: 7 Weeks

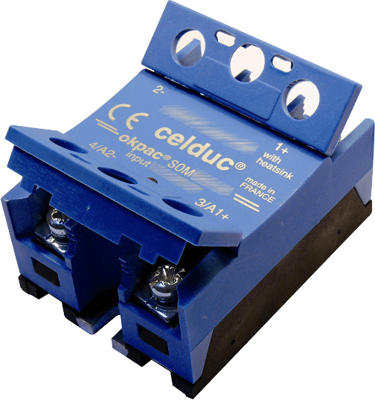

Solid state relay, SOM040100, Celduc Relais
The SOM040100 is a MOSFET transistor DC output - with output protection.
Features
- Ultra low on-state resistance
- Low output leakage current
- Low control current consumption
- Built-in overvoltage protection
- Reverse protected triggered control input to avoid linear control risks
- Touch protected housing IP20
Technical specifications
| Switching Mode | DC on/off | |
| Control Voltage | 3.5-32 VDC | |
| Rated current | 40 A | |
| LED display | Yes | |
| Voltage | 5-60 VDC | |
| Assembly | screw mounting |
Download
Logistics
| Customs tariff number | 85364190 |
| Country of origin | FR |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
