SOI885070 | Celduc Relais

Solid state relay, 3.5-32 VDC, zero voltage switching, 24-625 VAC, 50 A, screw mounting, SOI885070

Order No.: 45P4914
EAN: 3760283302334
MPN:
SOI885070
SOI885070 Celduc Relais Solid State Relays
Image may differ
Unit Price (€ / pc.)
125.9258 € *
Available in 5 Days: 313 pcs. - if ordered today
Total Price:
2,392.59 € *
*incl. VAT plus shipping costs
Subject to prior sale
19 pcs.
125.9258 €

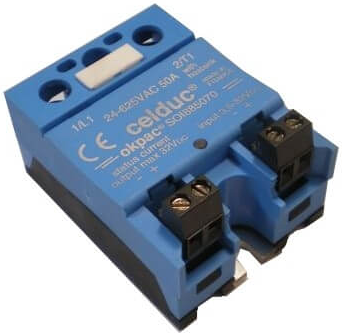

Solid state relay, SOI885070, Celduc Relais

The SOI885070 is a single phase power solid state relay with status output designed for applications that require an on-off indication of current in the power output. Control and status output are insulated.

Features

  • Input over-voltage and polarity reversal protection
  • Very low zero cross voltage, over-voltage protection with varistor
  • Non removable input connectors, with screw terminals
  • IP20 protection by removable flaps on power terminals with optional labels
Technical specifications
Filter Property Value
Rated current 50 A
Voltage 24-625 VAC
Control Voltage 3.5-32 VDC
Voltage V RRM (peak reverse voltage) 1600 V
Switching Mode zero voltage switching
Assembly screw mounting
LED display Yes
Logistics
Property Value
Country of origin FR
Customs tariff number 85365003
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
