SOD867180 | Celduc Relais
Solid state relay, 7-30 VDC, zero voltage switching, 150-510 VAC, 75 A, screw mounting, SOD867180
Order No.: 45P4913
EAN: 3760283302716
MPN:
SOD867180
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
112.7763 € *
Available in 5 Days: 277 pcs. - if ordered today

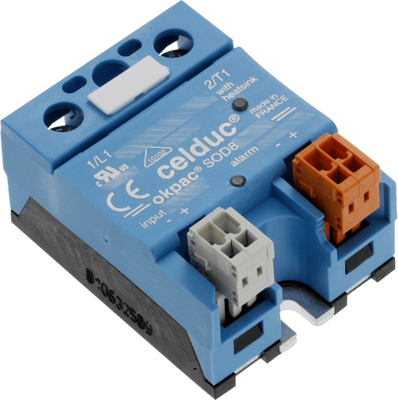

Solid state relay, SOD867180, Celduc Relais
The SOD867180 is a single phase power solid state relay with system diagnostics of the load, the mains and the SSR output.
Features
- Normally closed status output
- Without external power supply
- Status visualization by yellow LED
- Status output can be chained
- Very low zero cross voltage
- Double removable input connectors
- IP20 protection by removable flaps on power terminals with optional labels
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated current | 75 A | |
| Voltage | 150-510 VAC | |
| Control Voltage | 7-30 VDC | |
| Switching Mode | zero voltage switching | |
| Assembly | screw mounting | |
| LED display | Yes |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | FR |
| Customs tariff number | 85365003 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
