SOD849180 | Celduc Relais

Solid state relay, 7-30 VDC, zero voltage switching, 50-265 VAC, 125 A, screw mounting, SOD849180

Order No.: 45P4911
EAN: 3760283300781
MPN:
SOD849180
SOD849180 Celduc Relais Solid State Relays
Image may differ
Unit Price (€ / pc.)
115.2872 € *
Standard delivery time from the manufacturer is: 15 Weeks
Total Price:
2,190.46 € *
*incl. VAT plus shipping costs
Subject to prior sale
19 pcs.
115.2872 €

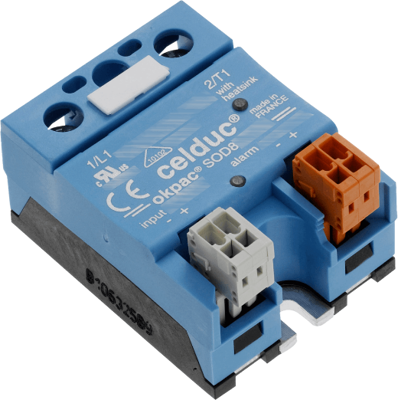

Solid state relay, SOD849180, Celduc Relais

The SOD849180 is a single phase power solid state relay with system diagnostics of the load, the mains and the SSR output.

Features

  • Normally closed status output
  • Without external power supply
  • Status visualization by yellow LED
  • Status output can be chained
  • Very low zero cross voltage
  • Double removable input connectors
  • IP20 protection by removable flaps on power terminals with optional labels
Technical specifications
Rated current 125 A
Voltage 50-265 VAC
Control Voltage 7-30 VDC
Voltage V RRM (peak reverse voltage) 600 V
Switching Mode zero voltage switching
Assembly screw mounting
LED display Yes
Logistics
Country of origin FR
Customs tariff number 85365003
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
