SOBR967640 | Celduc Relais

Solid state relay, 10-30 VDC, zero voltage switching, 24-660 VAC, 41 A, panel mounting, SOBR967640

Order No.: 31G1267
EAN: 3760283309692
MPN:
SOBR967640
Series: SOBR
SOBR967640 Celduc Relais Solid State Relays

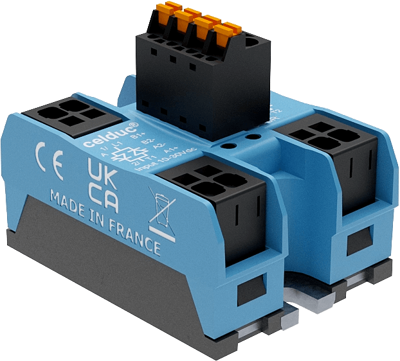

Image may differ
Unit Price (€ / pc.)
171.36 € *
Available in 5 Days: 13 pcs. - if ordered today
Total Price:
171.36 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
171.36 €

Solid state relay, SOBR967640, Celduc Relais

Two-phase zero cross solid state relay especially designed for AC-1 resistive loads. It offers overvoltage protection at the output by self turn ON of the thyristors (TVS diodes on gates).

Features

  • 2 inputs with green LED visualization for each input
  • Double "push-in" spring power terminals
  • Designed in compliance with IEC/ EN60947-4-3 ; IEC 60335-1/ VDE0700-1 ; IEC 62314

Applicatons

  • Heating elements
Technical specifications
Rated current 41 A
Voltage 24-660 VAC
Control Voltage 10-30 VDC
Voltage V RRM (peak reverse voltage) 1.2 kV
Switching Mode zero voltage switching
Assembly panel mounting
LED display Yes
Logistics
Customs tariff number 85365003
Country of origin FR
Compliance
RoHS conform Yes
SVHC free No
Date of RoHS guidelines 3/31/15
