SOB967660 | Celduc Relais
Solid state relay, 10-30 VDC, zero voltage switching, 24-600 VAC, 75 A, screw mounting, SOB967660
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
166.4691 € *
Available in 5 Days: 101 pcs. - if ordered today

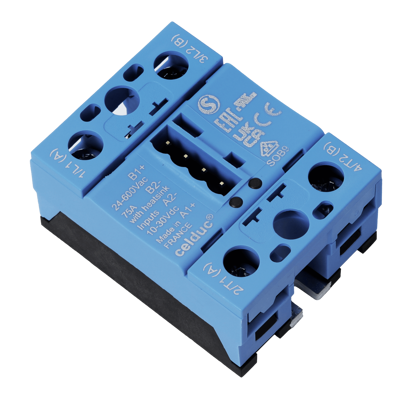

Solid state relay, SOB967660, Celduc Relais
Dual power solid state relay especially designed for AC-51 resistive loads. Back to back thyristors on output with Thermo Mechanical Stress Solution technology with a long lifetime expectancy: 24 to 600 VAC 2x75 A (max 2x50 A).
Features
- 2 inputs with green LED visualization for each input
- Different possibilities for input connector
- IP20 protection by removable flaps on terminals with optional labels
- Designed in conformity with IEC/ EN60947-4-3 and EN60950/VDE0805 ; IEC 60335-1/ VDE0700-1 ; UL-cUL S-mark certification
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated current | 75 A | |
| Voltage | 24-600 VAC | |
| Control Voltage | 10-30 VDC | |
| Switching Mode | zero voltage switching | |
| Assembly | screw mounting | |
| LED display | Yes |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | FR |
| Customs tariff number | 85365003 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
