SOB965660 | Celduc Relais

Solid state relay, 10-30 VDC, zero voltage switching, 24-600 VAC, 50 A, screw mounting, SOB965660

Order No.: 45P4905
EAN: 3760283301160
MPN:
SOB965660
SOB965660 Celduc Relais Solid State Relays
Image may differ
Unit Price (€ / pc.)
147.7266 € *
Standard delivery time from the manufacturer is: 5 Weeks
Total Price:
2,806.81 € *
*incl. VAT plus shipping costs
Subject to prior sale
19 pcs.
147.7266 €

Solid state relay, SOB965660, Celduc Relais

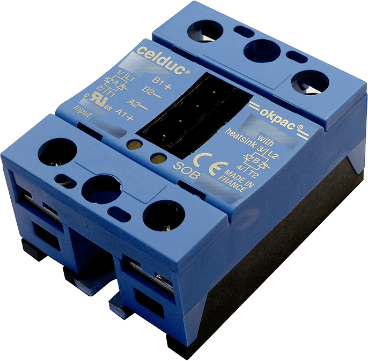

The SOB965660 is a dual solid state relay especially designed for AC-51 resistive loads.

Features

  • 2 inputs with green LED visualization for each input
  • Different possibilities for input connector
  • IP20 protection by removable flaps on terminals with optional labels
Technical specifications
Filter Property Value
Rated current 50 A
Voltage 24-600 VAC
Control Voltage 10-30 VDC
Voltage V RRM (peak reverse voltage) 1200 V
Switching Mode zero voltage switching
Assembly screw mounting
LED display Yes
Logistics
Property Value
Country of origin FR
Customs tariff number 85365003
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
