SOB965660-TH | Celduc Relais
Solid state relay, 10-30 VDC, zero voltage switching, 240-600 VAC, 50 A, panel mounting, SOB965660-TH
Unit Price (€ / pc.)
150.6302 € *
Available: 0 pcs.
Available in 5 Days: 874 pcs.
Leadtime: On Request **

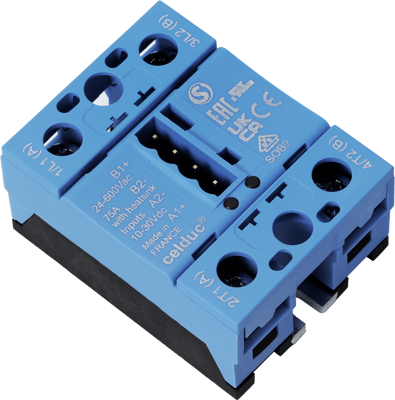

Solid state relay, SOB965660-TH, Celduc Relais
Dual zero cross solid state relay especially designed for AC-51 resistive loads. Back to back thyristors on output with TMS2 technology with a long lifetime expectancy: 24 to 600 VAC 2x50 A.
Features
- 2 inputs with green LED visualization for each input
- IP20 protection by removable flaps on terminals with optional labels
- Designed in conformity with IEC/ EN60947-4-3 and EN60950/VDE0805 ; IEC 60335-1/ VDE0700-1 ; UL-cUL, S-mark certification
Applicatons
- Heating elements
Technical specifications
| Rated current | 50 A | |
| Voltage | 240-600 VAC | |
| Control Voltage | 10-30 VDC | |
| Voltage V RRM (peak reverse voltage) | 1.2 kV | |
| Switching Mode | nullspannungsschaltend | |
| Assembly | Panelmontage | |
| LED display | Yes |
Download
Logistics
| Country of origin | FR |
| Customs tariff number | 85365003 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
