SOB965060 | Celduc Relais

Solid state relay, 4-32 VDC, zero voltage switching, 24-600 VAC, 50 A, screw mounting, SOB965060

Order No.: 45P4902
EAN: 3760283302563
MPN:
SOB965060

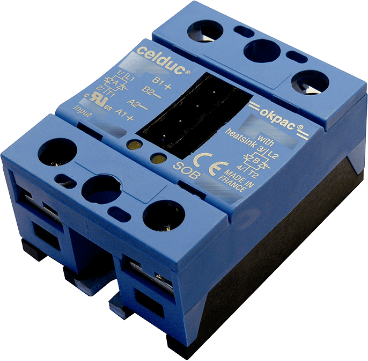

SOB965060 Celduc Relais Solid State Relays
Image may differ
Unit Price (€ / pc.)
148.036 € *
Standard delivery time from the manufacturer is: 5 Weeks
Total Price:
2,812.68 € *
*incl. VAT plus shipping costs
Subject to prior sale
19 pcs.
148.036 €

Solid state relay, SOB965060, Celduc Relais

The SOB965060 is a dual solid state relay especially designed for AC-51 resistive loads.

Features

  • Green LED visualization on the 2 individual control inputs
  • Input over-voltage protection
  • Different possibilities for input connector
  • IP20 protection by removable flaps on terminals with optional labels
Technical specifications
Rated current 50 A
Voltage 24-600 VAC
Control Voltage 4-32 VDC
Voltage V RRM (peak reverse voltage) 1200 V
Switching Mode zero voltage switching
Assembly screw mounting
LED display Yes
Logistics
Country of origin FR
Customs tariff number 85365003
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
