SOB962060 | Celduc Relais
Solid state relay, 4-32 VDC, zero voltage switching, 24-600 VAC, 25 A, screw mounting, SOB962060
Order No.: 45P4899
EAN: 3760283300064
MPN:
SOB962060
Unit Price (€ / pc.)
115.5014 € *
Available in 5 Days: 16 pcs. - if ordered today

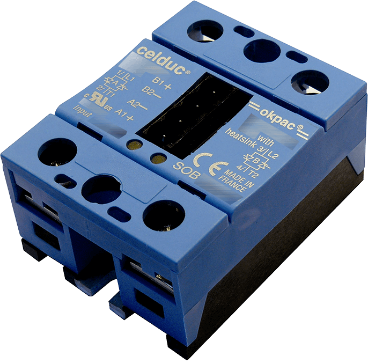

Solid state relay, SOB962060, Celduc Relais
The SOB962060 is a dual solid state relay especially designed for AC-51 resistive loads.
Features
- Green LED visualization on the 2 individual control inputs
- Input over-voltage protection
- Different possibilities for input connector
- IP20 protection by removable flaps on terminals with optional labels
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated current | 25 A | |
| Voltage | 24-600 VAC | |
| Control Voltage | 4-32 VDC | |
| Voltage V RRM (peak reverse voltage) | 1200 V | |
| Switching Mode | zero voltage switching | |
| Assembly | screw mounting | |
| LED display | Yes |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | FR |
| Customs tariff number | 85365003 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
