SOB867640 | Celduc Relais

Solid state relay, 8-30 VDC, zero voltage switching, 24-600 VAC, 75 A, screw mounting, SOB867640

Order No.: 45P4894
EAN: 3760283301047
MPN:
SOB867640

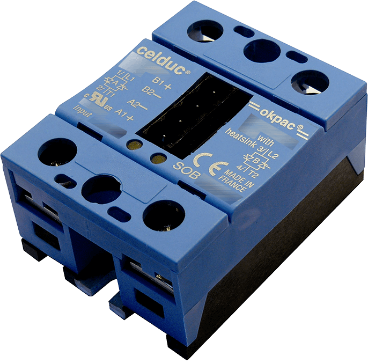

SOB867640 Celduc Relais Solid State Relays
Image may differ
Unit Price (€ / pc.)
173.2878 € *
Available in 5 Days: 272 pcs. - if ordered today
Total Price:
3,292.47 € *
*incl. VAT plus shipping costs
Subject to prior sale
19 pcs.
173.2878 €

Solid state relay, SOB867640, Celduc Relais

The SOB867640 is a dual solid state relay especially designed for AC-51 resistive loads.

Features

  • 2 inputs with green LED visualization for each input
  • Over-Voltage protection on input (transil) and on output with transient proof by self-protection (Thyristors turn ON in case of overvoltage)
  • Very low zero cross voltage
  • Different possibilities for input connector
  • IP20 protection by removable flaps on terminals with optional labels
Technical specifications
Filter Property Value
Rated current 75 A
Voltage 24-600 VAC
Control Voltage 8-30 VDC
Voltage V RRM (peak reverse voltage) 1200 V
Switching Mode zero voltage switching
Assembly screw mounting
LED display Yes
Logistics
Property Value
Country of origin FR
Customs tariff number 85365003
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
