SOB542460 | Celduc Relais

Solid state relay, 3-32 VDC, zero voltage switching, 12-280 VAC, 25 A, screw mounting, SOB542460

Order No.: 45P4884
EAN: 3760283302853
MPN:
SOB542460

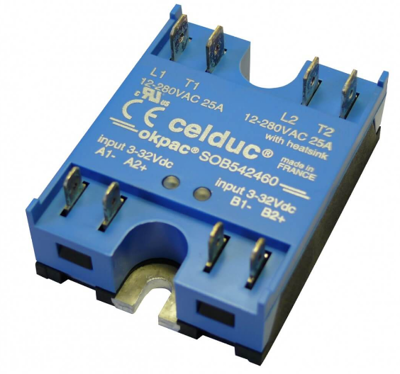

SOB542460 Celduc Relais Solid State Relays
Image may differ
Unit Price (€ / pc.)
94.01 € *
Available in 5 Days: 1 pcs. - if ordered today
Total Price:
1,786.19 € *
*incl. VAT plus shipping costs
Subject to prior sale
19 pcs.
94.01 €

Solid state relay, SOB542460, Celduc Relais

The SOB542460 is a double solid state relay with two control for 2 legs and input current regulator LED.

Features

  • Power and Control connections by FASTON terminals
Technical specifications
Filter Property Value
Rated current 25 A
Voltage 12-280 VAC
Control Voltage 3-32 VDC
Voltage V RRM (peak reverse voltage) 600 V
Switching Mode zero voltage switching
Assembly screw mounting
LED display Yes
Logistics
Property Value
Country of origin FR
Customs tariff number 85365003
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
