SO943460 | Celduc Relais

Solid state relay, 3-32 VDC, zero voltage switching, 12-280 VAC, 40 A, screw mounting, SO943460

Order No.: 31G1248
EAN: 3760283301092
MPN:
SO943460
Series: SO9
SO943460 Celduc Relais Solid State Relays
Image may differ
Unit Price (€ / pc.)
52.241 € *
Available in 10 days: 147 pcs. - if ordered today
Total Price:
992.58 € *
*incl. VAT plus shipping costs
Subject to prior sale
19 pcs.
52.241 €

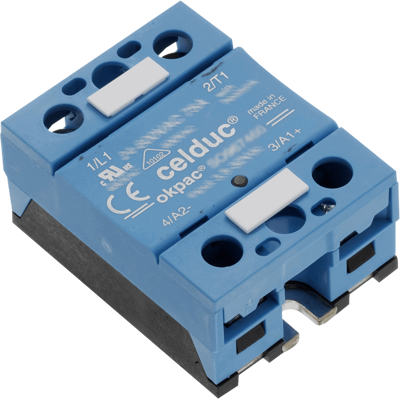

Solid state relay, SO943460, Celduc Relais

Single phase power solid state relay especially designed for resistive loads (AC-51). Back to back thyristors on output with Thermo Mechanical Stress Solution technology with a long lifetime expectancy: 12 to 280 VAC 40 A.

Features

  • Green LED visualization on the input
  • Input over-voltage protection
  • IP20 protection by removable flaps on terminals with optional labels
  • Designed in conformity with IEC/ EN60947-4-3 ; IEC 60335-1/ VDE0700-1 ; UL508 (cURus)
Technical specifications
Filter Property Value
Control Voltage 3-32 VDC
Voltage 12-280 VAC
Rated current 40 A
LED display Yes
Switching Mode zero voltage switching
Assembly screw mounting
Logistics
Property Value
Country of origin FR
Customs tariff number 85365003
Compliance
Property Value
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
