SMT8628521 | Celduc Relais

Solid state relay, 24-255VAC/VDC, zero voltage switching, 24-520 VAC, 25 A, DIN rail, SMT8628521

Order No.: 45P4803
EAN: 3760283306646
MPN:
SMT8628521
SMT8628521 Celduc Relais Solid State Relays

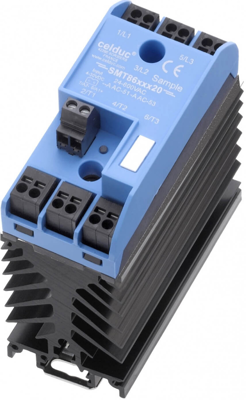

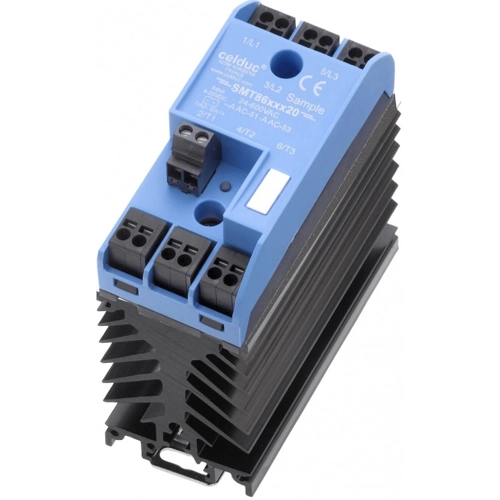

Image may differ
Unit Price (€ / pc.)
167.8019 € *
Available in 5 Days: 25 pcs. - if ordered today
Total Price:
1,678.02 € *
*incl. VAT plus shipping costs
Subject to prior sale
10 pcs.
167.8019 €

Solid state relay, SMT8628521, Celduc Relais

The SMT8628521 is a three phase power solid state relay especially designed for most types of loads.

Features

  • Over-Voltage protection on input (transil) and output (RC+VDR)
  • Double Push-in spring power terminals
  • Green LED visualization on the input
  • Built in IP20
Technical specifications
Filter Property Value
Rated current 25 A
Voltage 24-520 VAC
Control Voltage 24-255VAC/VDC
Voltage V RRM (peak reverse voltage) 1200 V
Switching Mode zero voltage switching
Assembly DIN rail
LED display Yes
Logistics
Property Value
Country of origin FR
Customs tariff number 85365003
Compliance
Property Value
SVHC free Yes
RoHS conform Yes
Date of RoHS guidelines 3/31/15
