SMB8670910 | Celduc Relais
Solid state relay, 4-30 VDC, zero voltage switching, 24-520 VAC, 75 A, screw mounting, SMB8670910
Order No.: 45P4791
EAN: 3760283306691
MPN:
SMB8670910
Unit Price (€ / pc.)
200.8958 € *
Available in 5 Days: 46 pcs. - if ordered today

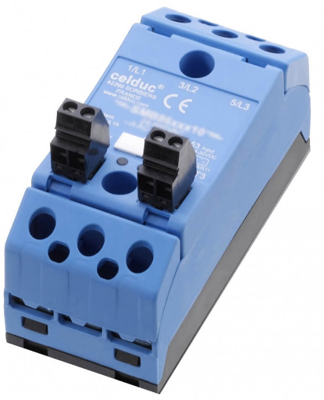

Solid state relay, SMB8670910, Celduc Relais
The SMB8670910 is a three phase power solid state relay especially designed for most types of loads.
Features
- Over-Voltage protection on output
- Direct copper bonding (DCB) technology
- Green LED visualization on the input
- Built in IP20 - protection with flaps
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated current | 75 A | |
| Voltage | 24-520 VAC | |
| Control Voltage | 4-30 VDC | |
| Voltage V RRM (peak reverse voltage) | 1600 V | |
| Switching Mode | zero voltage switching | |
| Assembly | screw mounting | |
| LED display | Yes |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85365003 |
| Country of origin | FR |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
