SILD867170 | Celduc Relais
Solid state relay, 3.5-32 VDC, zero voltage switching, 150-510 VAC, 75 A, DIN rail, SILD867170
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
147.441 € *
Available in 5 Days: 177 pcs. - if ordered today

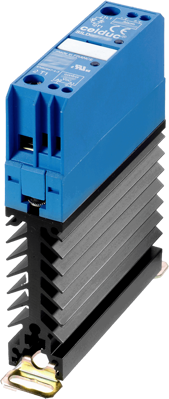

Solid state relay, SILD867170, Celduc Relais
AC Semiconductor contactor with diagnostic compact size and DIN rail mounting.
Features
- Very high immunity
- Green LED visualization on the input
- IP20 housing
- Low zero cross voltage
- Designed in conformity with IEC/ EN60947-4-3 and EN60950/VDE0805 ; IEC 60335-1/ VDE0700-1 ; UL-cUL
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated current | 75 A | |
| Voltage | 150-510 VAC | |
| Control Voltage | 3.5-32 VDC | |
| Switching Mode | zero voltage switching | |
| Assembly | DIN rail | |
| LED display | Yes |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85365003 |
| Country of origin | FR |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | No |
| SVHC free | No |
