SILD845160 | Celduc Relais

Solid state relay, 3-32 VDC, zero voltage switching, 70-275 VAC, 50 A, DIN rail, SILD845160

Order No.: 45P4746
EAN: 3760283307377
MPN:
SILD845160

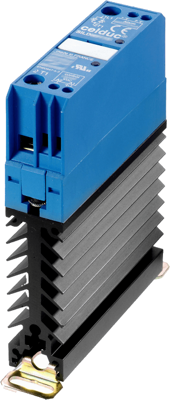

SILD845160 Celduc Relais Solid State Relays
Image may differ
Unit Price (€ / pc.)
110.3844 € *
Standard delivery time from the manufacturer is: 7 Weeks
Total Price:
110.38 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
110.3844 €

AC Semiconductor contactor, SILD845160, Celduc Relais

AC Semiconductor contactor pitch 22,5 mm with diagnostic compact size and DIN rail mounting.

Features

  • Normally closed status output
  • Without external power supply
  • Status visualization by yellow LED
  • Status output can be chained
  • This zero cross model switch ON in case of overvoltage
  • Mounting and dismounting on DIN rail without any tool or directly mountable on panel
Technical specifications
Filter Property Value
Rated current 50 A
Voltage 70-275 VAC
Control Voltage 3-32 VDC
Voltage V RRM (peak reverse voltage) 1200 V
Switching Mode zero voltage switching
Assembly DIN rail
LED display Yes
Logistics
Property Value
Country of origin FR
Customs tariff number 85365003
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
