SG544120 | Celduc Relais
Solid state relay, 0-5 VDC, 230 VAC, 40 A, screw mounting, SG544120
Order No.: 45P4702
EAN: 3760283305922
MPN:
SG544120
Unit Price (€ / pc.)
276.9725 € *
Standard delivery time from the manufacturer is: 15 Weeks

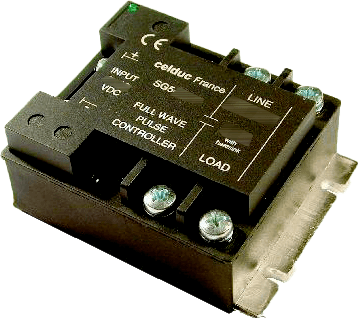

Full wave pulse controller, SG544120, Celduc Relais
The SG544120 is a relay with proportional control that has an analog input isolated from the mains, provided to vary the cyclic working ratio of a load proportionally to the input. The control is synchronous with the mains and has only full periods.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| LED display | No | |
| Assembly | screw mounting | |
| Rated current | 40 A | |
| Control Voltage | 0-5 VDC | |
| Voltage | 230 VAC | |
| Voltage V RRM (peak reverse voltage) | 600 V |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | FR |
| Customs tariff number | 85365003 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
