SCM030200 | Celduc Relais

Solid state relay, 4.5-32 VDC, DC on/off, 2-200 VDC, 30 A, screw mounting, SCM030200

Order No.: 45P4677
EAN: 3760283305595
MPN:
SCM030200
SCM030200 Celduc Relais Solid State Relays
Image may differ
Unit Price (€ / pc.)
263.8944 € *
Available in 5 Days: 1 pcs. - if ordered today
Total Price:
527.79 € *
*incl. VAT plus shipping costs
Subject to prior sale
2 pcs.
263.8944 €

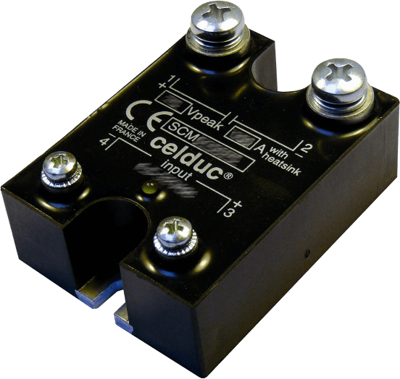

Solid state relay, SCM030200, Celduc Relais

DC solid state relay with ultra low output leakage current. New innovative isolated driver ensuring fast power transistor turn on and off therefore low power transient.

Features

  • Latest MOSFET technology generation
  • Low control current consumption
  • Triggered control input to avoid linear control risks
  • Low conducted and radiated disturbances
Technical specifications
Filter Property Value
Switching Mode DC on/off
Rated current 30 A
Assembly screw mounting
Voltage 2-200 VDC
LED display Yes
Control Voltage 4.5-32 VDC
Logistics
Property Value
Customs tariff number 85364900
Country of origin FR
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
