SCM0150100 | Celduc Relais
Solid state relay, 72-110 VDC, DC on/off, 0-1700 VDC, 50 A, screw mounting, SCM0150100
Order No.: 45P4676
EAN: 3760283305601
MPN:
SCM0150100
Unit Price (€ / pc.)
362.0932 € *
Available in 5 Days: 193 pcs. - if ordered today

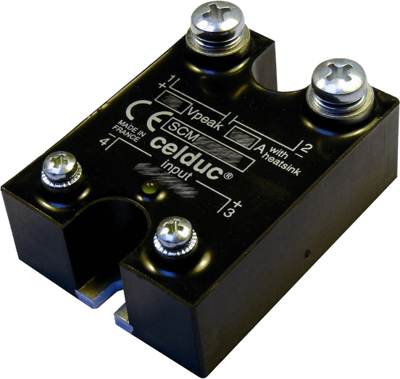

Solid state relay, SCM0150100, Celduc Relais
DC solid state relay with ultra low output leakage current. New innovative isolated driver ensuring fast power transistor turn on and off therefore low power transient.
Features
- Latest MOSFET technology generation
- Low control current consumption
- Triggered control input to avoid linear control risks
- Low conducted and radiated disturbances
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated current | 50 A | |
| Voltage | 0-1700 VDC | |
| Control Voltage | 72-110 VDC | |
| Switching Mode | DC on/off | |
| Assembly | screw mounting | |
| LED display | Yes |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | FR |
| Customs tariff number | 85364900 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
