SCM0100200 | Celduc Relais
Solid state relay, 4.5-32 VDC, DC on/off, 2-200 VDC, 100 A, screw mounting, SCM0100200
Order No.: 45P4675
EAN: 3760283305618
MPN:
SCM0100200
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
313.0057 € *
Available in 5 Days: 78 pcs. - if ordered today

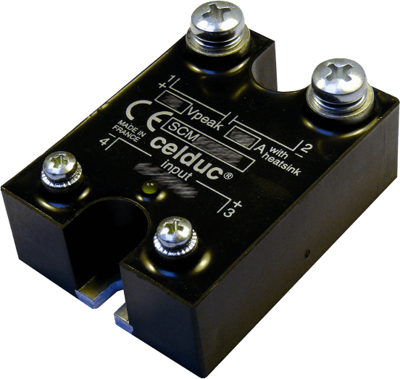

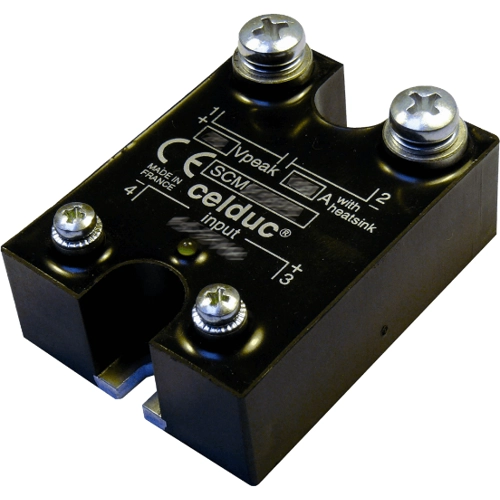

Solid state relay, SCM0100200, Celduc Relais
DC solid state relay with ultra low output leakage current. New innovative isolated driver ensuring fast power transistor turn on and off therefore low power transient.
Features
- Latest MOSFET technology generation
- Low control current consumption
- Triggered control input to avoid linear control risks
- Low conducted and radiated disturbances
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated current | 100 A | |
| Voltage | 2-200 VDC | |
| Control Voltage | 4.5-32 VDC | |
| Voltage V RRM (peak reverse voltage) | 200 V | |
| Switching Mode | DC on/off | |
| Assembly | screw mounting | |
| LED display | Yes |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85364900 |
| Country of origin | FR |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
