SCI0100600 | Celduc Relais
Solid state relay, 4.5-32 VDC, DC on/off, 0-600 VDC, 100 A, screw mounting, SCI0100600
Order No.: 45P4672
EAN: 3760283305649
MPN:
SCI0100600
Unit Price (€ / pc.)
601.4022 € *
Available in 5 Days: 75 pcs. - if ordered today

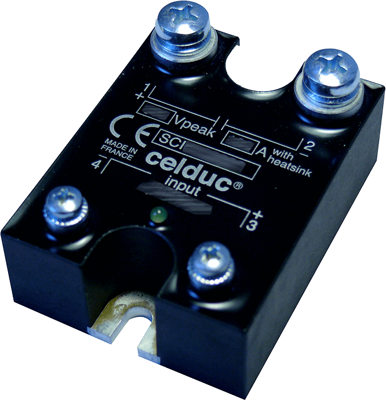

Solid state relay, SCI0100600, Celduc Relais
DC solid state relay with ultra low output leakage current. New innovative isolated driver ensuring fast power transistor turn on and off therefore low power transient.
Features
- Latest high voltage IGBT technology generation
- Low control current consumption
- Triggered control input to avoid linear control risks
- Low conducted and radiated disturbances
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Switching Mode | DC on/off | |
| Rated current | 100 A | |
| Assembly | screw mounting | |
| Voltage | 0-600 VDC | |
| LED display | Yes | |
| Control Voltage | 4.5-32 VDC |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85364900 |
| Country of origin | FR |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
