SCFL62100 | Celduc Relais
Solid state relay, 5-30 VDC, zero voltage switching, 24-440 VAC, 25 A, screw mounting, SCFL62100
Order No.: 45P4671
EAN: 3760283307308
MPN:
SCFL62100
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
72.3639 € *
Available in 5 Days: 108 pcs. - if ordered today

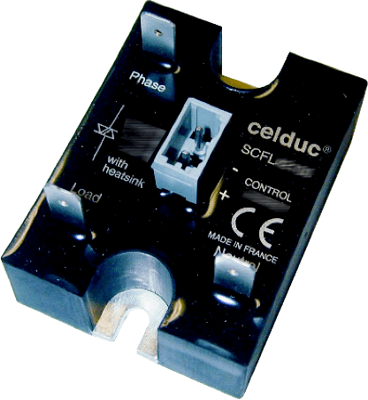

Solid state relay, SCFL62100, Celduc Relais
Low noise solid state relay designed for resistive loads.
Features
- Power connections by FASTON terminal
- Pluggable and with spring terminals
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated current | 25 A | |
| Voltage | 24-440 VAC | |
| Control Voltage | 5-30 VDC | |
| Voltage V RRM (peak reverse voltage) | 1200 V | |
| Switching Mode | zero voltage switching | |
| Assembly | screw mounting | |
| LED display | No |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85365003 |
| Country of origin | FR |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
