SC841110 | Celduc Relais
Solid state relay, 4-30 VDC, zero voltage switching, 12-280 VAC, 12 A, screw mounting, SC841110
Order No.: 31G1252
EAN: 3760283307186
MPN:
SC841110
V23100-S302-A210
Unit Price (€ / pc.)
69.1152 € *
Available: 54 pcs.
Available in 5 Days: 45 pcs. - if ordered today

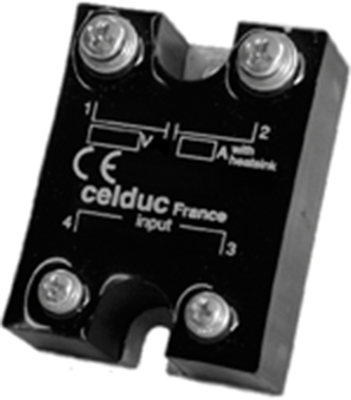

Solid state relay, SC841110, Celduc Relais
Power solid state relay, single phase SSR, zero cross with output protection.
Applications
- Heating elements
- Discharge lamps
- Incandescent light bulbs and infrared lamps
- Capacitors
- Electrovalves and electromagnets
- Contactors
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated current | 12 A | |
| Voltage | 12-280 VAC | |
| Control Voltage | 4-30 VDC | |
| Voltage V RRM (peak reverse voltage) | 600 V | |
| Switching Mode | zero voltage switching | |
| Assembly | screw mounting | |
| LED display | No |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85365003 |
| Country of origin | FR |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Date of RoHS guidelines | 6/8/11 |
| SVHC free | Yes |
